Place of Origin:
China
Marka adı:
ZK
Model numarası:
Döner fırın Ø1.6 × 32m-Ø5.1 × 72
Rotary Lime kiln is one kind of furnace which is widely used for calcined active lime production in the world. It is also widely used in many industries such as construction materials, metallurgy, chemical and environmental protection.
The energy-saving rotary lime kiln has the advanced structure and stable operation. It adopts the vertical preheater with low pressure loss which can effectively improve the preheating effects. The raw materials' decomposition rate in the vertical preheater can reach to 30% before entering into the rotary kiln. It is also suitable for different fuels including pulverized solid fuel, liquid fuel and gas fuel. The final lime products have high activity. This kind of rotary kiln already have been widely used in the steel industry and chemical industry.
According to the calcination character of limestone, lime rotary kiln is specialized design for production of active lime. This type of kiln can work with vertical preheater and vertical cooler to achievethe advantages like high use ratio of raw materials, complete calcination, even quality, good quality lime, high capacity output, environmental and energy saving, simple operation and longer working life. This kiln is very suitable for limestone calcination for industries like metallurgy, chemical, construction materials and etc.
1. The rotary kiln delivers consistent output, making it a versatile solution for active lime production lines of all scales, from small and medium to large.
2. Featuring a straightforward, open-type calcination design, the rotary kiln produces high-quality lime with remarkable stability. It significantly minimizes the occurrence of under-burnt or over-burnt lime, resulting in a final product of superior activity (typically 340–380mL, and up to 400mL) that is ideal for the steelmaking industry. Under comparable conditions, the activity of lime from a rotary kiln averages 30mL higher than that from a gas-fired vertical kiln.
3. The rotary kiln allows for the direct processing of fine limestone (10–50mm in size). This capability enables the full utilization of mine resources, as fine limestone (0–30mm) typically accounts for 30–40% of total quarry yield. This approach not only maximizes resource efficiency but also aligns with the sustainable development goals of the lime industry.
4. The most significant advantage of the rotary kiln process is the consistently high quality of the final lime product. This makes active lime production projects based on rotary kilns highly suitable for the comprehensive development of mineral resources, with promising long-term prospects.
Technical Parameter | Value |
---|---|
Processing Capacity | 150-1200T/D |
Port | Qingdao, Shanghai, Tianjin |
Power | 7.5-75(kW) |
Service | Design, Manufacturing, Sales |
Control System | PLC |
Rotary Kiln Inclination | 3%~4% |
Application | Industrial |
Calcination Material | Limestone, Dolomite, Bauxite, Magnesite, Kaolin, Clinker Etc |
Color | As Client's Request |
Rotary Kiln Model | Ø2.5×40m-Ø5.1×72m |

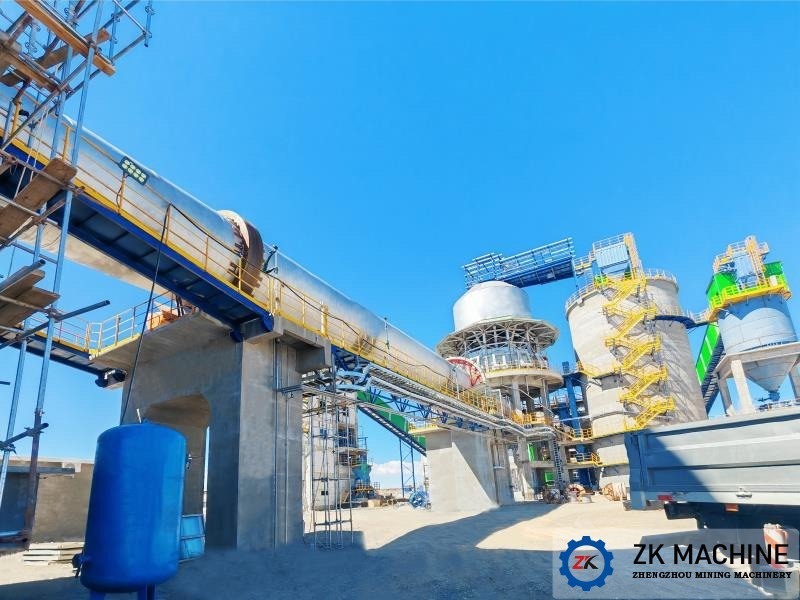

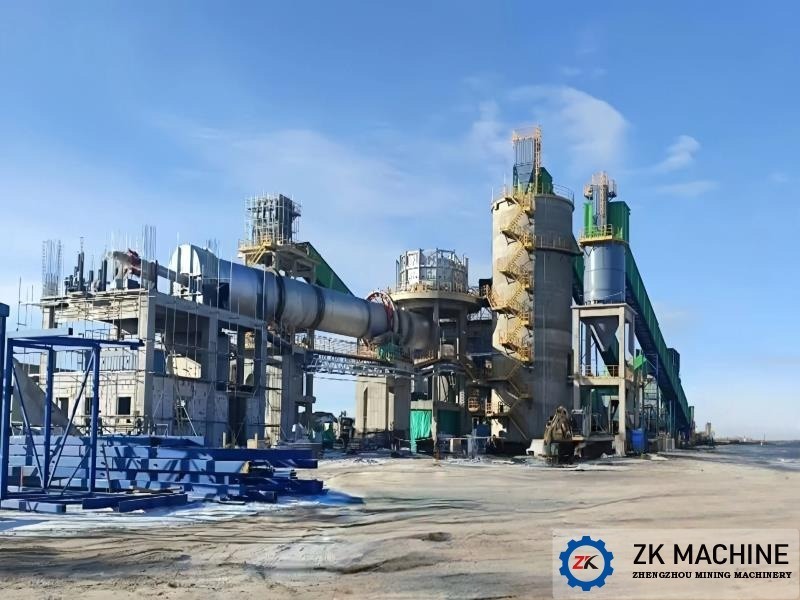

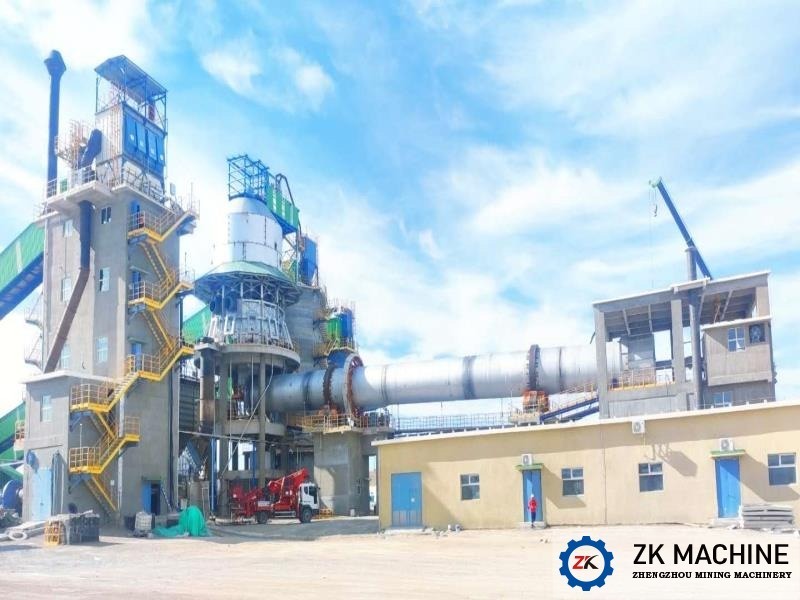

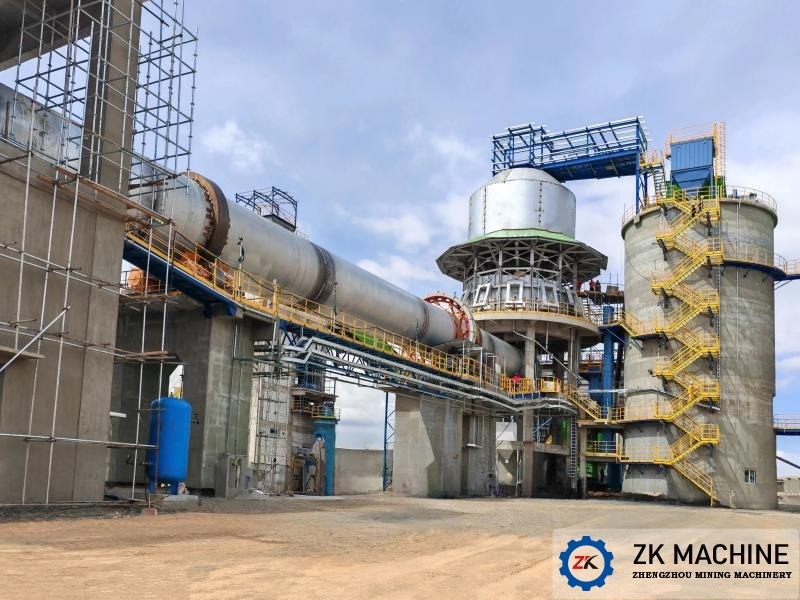

Outer Mongolia 400 T/D Active Lime Production Line Project
https://www.zkcomp.com/cases/Outer-Mongolia-400-T/D-Active-Lime-Project.html
Iran 200T/D Quick Lime Calcination Plant
https://www.zkcomp.com/cases/Russia-150t/d-lime-plant-project.html
Russia 150t/d Lime Production Line Project
https://www.zkcomp.com/cases/Russia-150t/d-lime-plant-project.html
Mud From Sugar Plant Regeneration Project in UAE
https://www.zkcomp.com/cases/UAE-lime-project.html
200tpd Quick Lime Plant in Iran
https://www.zkcomp.com/cases/Iran-active-lime-project.html
50,000 t/a Active Lime Project in Congo, Africa
https://www.zkcomp.com/cases/congo-active-lime-project.html
1.9x30m Lime Kiln for Sugar Residue Recovery Project in Bangladesh
https://www.zkcomp.com/cases/Bangladesh-lime-kiln-project.html.html
50tpd Quick Lime Plant in Iran
https://www.zkcomp.com/cases/iran-50tpd-lime-plant-project.html
50,000 t/a Active Lime Project in Congo, Africa
https://www.zkcomp.com/cases/congo-active-lime-project.html
Product Packaging:

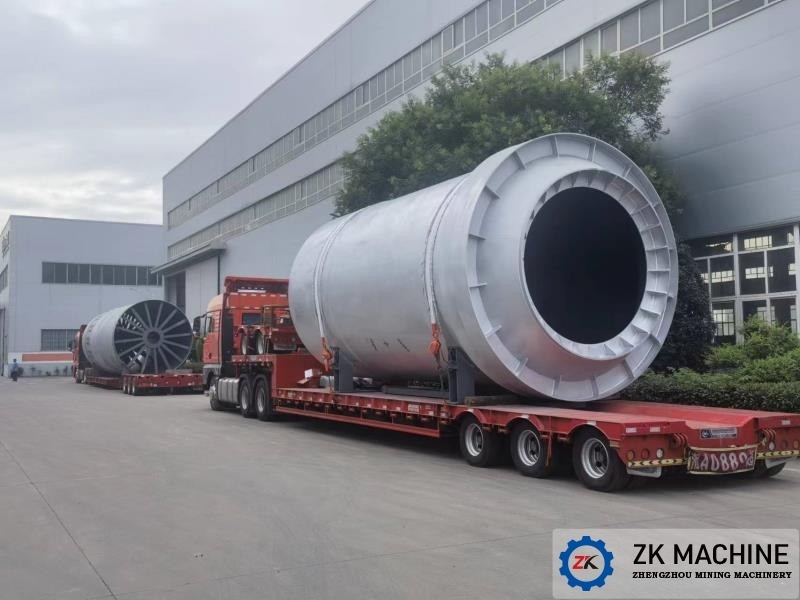

The Calcination Equipment will be securely packaged in a sturdy cardboard box with ample padding to prevent any damage during transport. The equipment will be disassembled and each part will be wrapped in protective materials to ensure safe delivery.
Shipping:
We offer worldwide shipping for the Calcination Equipment. The product will be shipped via a reliable courier service to ensure timely delivery. Customers will receive a tracking number to monitor the shipment status. Please allow 3-5 business days for processing and handling before the equipment is dispatched for shipping.
